YCB7LE-63 RCBO

Overview Parameter Installation File Download

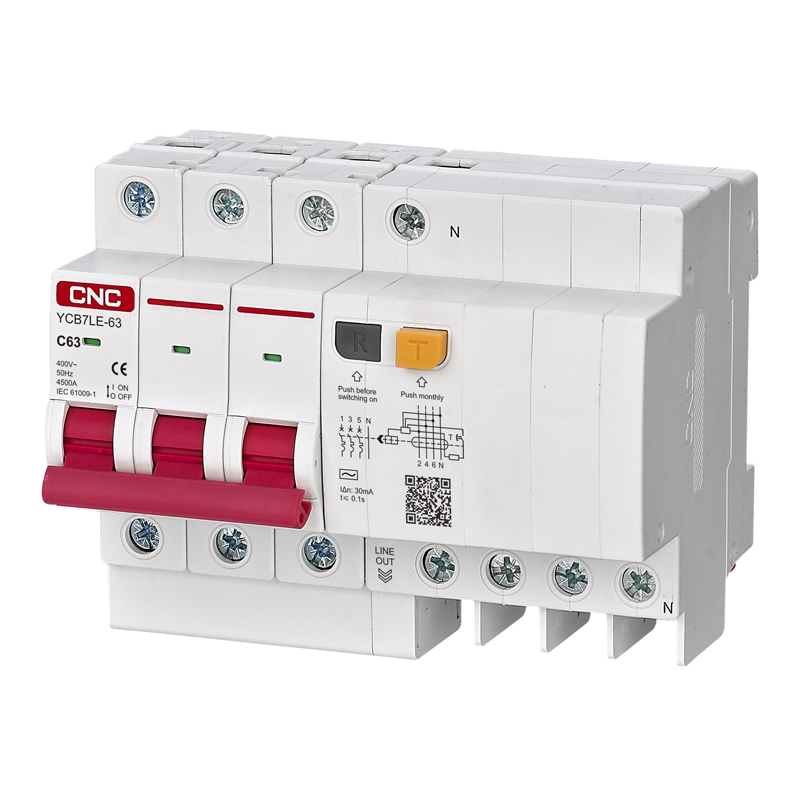

YCB7LE-63 RCBO

6kA High breaking capacity | B, C, D Curve | 1P+N, 2P, 3P, 3P+N, 4P Poles | Small sheel/Big sheel can choose

已复制到剪切板

Micro curved surface design
Humanized handle
On off indicating window
Anti-crip
All copper current carrier
Precise leakage protection

Parameter

Identify different items

Electrical parameters

Model

Frame current

Rated insulation voltage

Rated current In(A)

Rated frequency

Instantaneous release type

Pole

Rated residual operation current

Rated short-circuit capacity Icn

Run short-circuit capacity Ics

Rated residual connecting and breaking capacity

Insulation impulse voltage capacity

Mechanical life

Electrical life

Grid distance

Protection class

Standard

Certification

YCB7LE-63

500V

6, 10, 16, 20, 25, 32, 40, 50, 63

50Hz

B, C, D

1P+N, 2P, 3P, 3P+N, 4P

0.03A, 0.05A, 0.1A

6kA

2kA

a. Each pole connected together with the neutral pole,can withstand the peak impact voltage of 6000V;
b. Each pole connected together with the neutral pole,can withstand the peak impulse voltage of 8000V between the metal bracket.

10000

4000

50mm

IP20

IEC 61009-1

Installation

YCB7LE-63 Overall and mounting dimensions(mm)

Dimensions table

Pole

1P+N

3P+N

Big shell size L(mm)

Small shell size L(mm)

53.3

42.2

71.1

101.9

88.8

114.9

97.8

132.7

115.6

File Downloads

Product Catalog

YCB7LE-63 Catalog.pdf

Note: The product continues to innovate and its performance continues to improve.
This technical parameter is for reference only.
